Voice Evacuation System

EF - SSPKCLP Series Voice Evacuation System Our Products Home

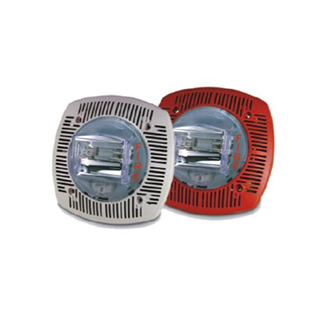

EF - SSPKCLP Series

EF - SSPKCLP Series

Description
  • Tamperproof Selectable Candela Selections of 15, 30, 75, 95 and 115
  • Unit Dimension: 6.1 Square X 1.88 Deep
  • Ceiling Mounting to a standard 4 X 2-1/8" Deep Backbox - No Extension Ring Required
  • High Quality dBA Output (Intelligible) Frequency Range 400-4000Hz
  • Screw Terminals, Separate In/Out Wiring (12-18 Gauge)
  • Field Selectable Power Taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
  • Speaker Voltage 25 or 70.7 VRMS Standard, Field Selectable
  • To Synchronize Use the Evax Synchronization Control Module
  • Tamperproof Grill Faceplate Available in Red or Off-White
  • UL 464/UL 1971/UL 2043 Listed for Fire Protective Service/Signal for Hearing Impaired
  • Xenon Strobe Maintains Constant Flash Rate (1Hz) Regardless of Input Voltage


Download Data Sheet
